Big Tex 14OD
Call For More Information
Over-The-Axle Dump Trailer
Is your work always changing and requiring you to adapt on the fly? Then you need a trailer that does the same. Versatility is the name of the game for the 14OD Over-The-Axle Dump Trailer, built to ensure that youre prepared to take on whatever type of load comes your way. Available in either gooseneck or bumper pull configurations, its full 96"-wide body is both strong and spacious - perfect for larger loads. And when faced with a heavy-duty haul, its fold-down side panels make loading and unloading it a snap. Ready for anything, the 14OD is here to change how you work.
- Overview
- Features/Specifications
- Standard/Optional Equipment
Overview
Big Tex 14OD Over-The-Axle Dump Trailer
Is your work always changing and requiring you to adapt on the fly? Then you need a trailer that does the same. Versatility is the name of the game for the 14OD Over-The-Axle Dump Trailer, built to ensure that youre prepared to take on whatever type of load comes your way. Available in either gooseneck or bumper pull configurations, its full 96"-wide body is both strong and spacious - perfect for larger loads. And when faced with a heavy-duty haul, its fold-down side panels make loading and unloading it a snap. Ready for anything, the 14OD is here to change how you work.
| SIZE | WEIGHT | DESCRIPTION |
|---|---|---|
| 14' | 4,550# | 96" x 14' Over the Axle Bumper Pull Dump |
Features/Specifications
Features
| AXLE | (2) 7,000# Quick Lubricating w/Elec. Brakes |
|---|---|
| JACK | 12,000# Top Wind Drop Leg |
| TIRE | ST235/80 R-16 Load Range E |
| FLOOR | 10 Gauge Smooth Steel |
| FRAME | 12" I-Beam, 14# |
| WHEEL | 16" x 6" Black Mod 8 Bolt |
| FINISH | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish. |
| LIGHTS | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| TONGUE | Integral with Frame (12" I-Beam, 14#) |
| COUPLER | Adj. 2-5/16" 18,000# Demco EZ Latch |
| G.V.W.R. | 14,000# |
|---|---|
| ELEC. PLUG | 7-Way RV |
| HITCH TYPE | Bumper Pull |
| SUSPENSION | Multi-Leaf Spring w/Equalizer |
| FINISH (Prep) | Steel is Cleaned to Ensure a Professional Smooth Finish. |
| SAFETY CHAINS | 3/8" Grd. 70 w/Safety Latch Hook (2 each) |
| DUMP BODY SIDES | 18" Tall, Drop-Down Sides (12 Gauge) |
| BED CROSSMEMBERS | 3" Channel, 16" Centers |
| DUMP BODY TOP RAIL | 2" x 2" Square Tubing |
| G.A.W.R. (Ea. Axle) | 7,000# |
Specifications
Big Tex 14OD Over-The-Axle Dump Trailer
| Model | Description |
|---|---|
| 14OD-14 | 96" x 14' Over the Axle Bumper Pull Dump |

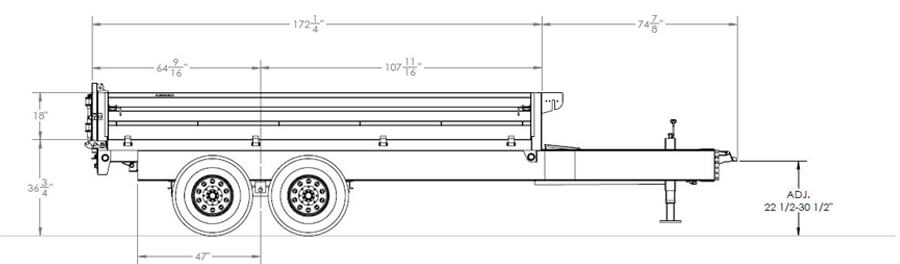

Dimensions
| Length | A | B | C |
|---|---|---|---|
| 14' |
Trailer Weights & Capacities
| Length | Empty Weight | Payload | Box Capacity |
|---|---|---|---|
| 14' | 4,550# | 9,450# | 6.2 Cubic Yards |
Standard/Optional Equipment
Standard Equipment
- Adjustable 2-5/16" Demco EZ Latch Coupler
- 12,000# Top Wind Drop-Leg Jack
- Lockable Pump & Battery Box Mounted in Front of Bed
- 18" Tall, 12 Gauge Fold-Down Side Panels
- 10 Gauge Steel Floor
- Fully Formed Tarp Shroud on Front
- Crank Style Roll Tarp- Standard Equipped
- J-Hooks on Sides & Rear for Tarp Control
- Self Contained Electric/Hydraulic Scissor Hoist
- Power Up/Power Down Hydraulic Pump
- 12V Interstate Deep Cycle Battery
- 110V On-Board Battery Charger (5 Amp)
- Premium Brand Axles
- Cambered Axles w/Quick Lubricating Hubs
- Forward Self Adjusting Electric Brakes on All Hubs
- Grommet Mount Sealed Lighting
- L.E.D. Lighting Package
- Sealed, Modular Wiring Harness
- Complete Break-A-Way System
- Zip Breakaway Cable
- 2" Square Tubing top Rail on Dump Bed
- Combo Gate (Barn Doors & Spreader Gate)
- (4) 1/2" D-Rings Inside Bed to Secure Equipment
- 7 Rear Slide-In Ramps - Standard Equipped
- Spare Tire Mount
- Radial Tires
Optional Equipment
| Category | Description |
|---|---|
| JACK | 12,000# Elec/Hyd. Jack BY Stillwell |
| JACKS | Dual Elec/Hyd 12,000# Jacks by Stillwell |
| POWER | 5 Watt Solar Charger |
| POWER | Wireless Remote |
| TIRE/WHEEL | Spare Tire (ST235/80 R-16 LR-E) |
| TIRE/WHEEL | Spare Tire Upgrade (ST235/85 R-16 LR-G) |
| TIRE/WHEEL | Tire Upgrade (ST235/85 R-16 LR-G) |
