Super Duty Tandem Axle Equipment Trailer
This is a trailer that will turn heads, and thats even before they see the versatility and value it brings to the table. The 16ET Super Duty Tandem Axle Equipment Trailer can haul everything from medium-duty equipment all the way up to a small tractor, and does it all with unmatched durability and a host of features and models to make it your own. Its a 83"-wide workhorse, and its ready to tackle your tough equipment hauling tasks.
- Overview
- Features/Specifications
- Standard/Optional Equipment
Overview
Big Tex 16ET Super Duty Tandem Axle Equipment Trailer
This is a trailer that will turn heads, and thats even before they see the versatility and value it brings to the table. The 16ET Super Duty Tandem Axle Equipment Trailer can haul everything from medium-duty equipment all the way up to a small tractor, and does it all with unmatched durability and a host of features and models to make it your own. Its a 83"-wide workhorse, and its ready to tackle your tough equipment hauling tasks.
| SIZE | WEIGHT | DESCRIPTION |
|---|---|---|
| 15'+3' | 3,570# | 83" x 15' + 3' (15' Deck w/ 3' Cleated Dovtail) Equipment Trailer |
| 17'+3' | 3,700# | 83" x 17' + 3' (17' Deck w/ 3' Cleated Dovtail) Equipment Trailer |
| 17'+3' GN | 4,110# | 83" x 17' + 3' (17' Deck w/ 3' Cleated Dovtail) Equip Trlr- Gooseneck |
| 18' GN | 3,410# | 83" x 21' + 3' (21' Deck w/ 3' Cleated Dovtail) Equip Trlr- Gooseneck |
| 19'+3' | 3,810# | 83" x 19' + 3' (19' Deck w/ 3' Cleated Dovtail) Equipment Trailer |
| 19'+3' GN | 4,180# | 83" x 19' + 3' (19' Deck w/ 3' Cleated Dovtail) Equip Trlr- Gooseneck |
| 20' | 3,530# | 83" x 20' (Straight Deck; No Dovetail) Equipment Trailer |
| 20' GN | 3,940# | 83" x 20' (Straight Deck; No Dovetail) Equipment Trailer- Gooseneck |
| 21'+3' GN | 4,270# | 83" x 21' + 3' (21' Deck w/ 3' Cleated Dovtail) Equip Trlr- Gooseneck |
| 22' | 3,620# | 83" x 22' (Straight Deck; No Dovetail) Equipment Trailer |
| 22' GN | 4,030# | 83" x 22' (Straight Deck; No Dovetail) Equipment Trailer- Gooseneck |
| 24' GN | 4,130# | 83" x 24' (Straight Deck; No Dovetail) Equipment Trailer- Gooseneck |
Features/Specifications
Features
| AXLE | (2) 8,000# Oil Bath w/Electric Brakes |
|---|---|
| JACK | 12,000# Drop Leg Jack-Side Wind |
| TIRE | ST215/75 R-17.5 Load Range H |
| FLOOR | 2" Treated Pine or Douglas Fir* |
| FRAME | 8" Channel |
| WHEEL | 17.5" x 6.75"; Black Mod 8 Bolt |
| FINISH | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish. |
| LIGHTS | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| COUPLER | Adjustable 2-5/16" 18,000# Demco |
| FENDERS | 9" x 72" Double Broke Diamond Plate w/Back (Removable) |
| G.V.W.R. | 17.500# |
|---|---|
| ELEC. PLUG | 7-Way RV |
| HITCH TYPE | Bumper Pull |
| SUSPENSION | Multi-Leaf Slipper Spring w/Equalizer |
| TONGUE/NECK | 6" Channel Fold Back/Wrap Tongue, 10" I-Beam Neck on GN |
| CROSSMEMBERS | 3" Channel on 16" Centers |
| FINISH (Prep) | Steel is Cleaned to Ensure a Professional Smooth Finish. |
| SAFETY CHAINS | 3/8" Grd. 70 w/Safety Latch Hook (2 ea) |
| FRONT STOP RAIL | 3/16" Fabricated Front Stop Rail |
| G.A.W.R. (Ea. Axle) | 8,000# |
Specifications
Big Tex 16ET Super Duty Tandem Axle Equipment Trailer
| Model | Description |
|---|---|
| 16ET-15+3 | 83" x 15' + 3' (15' Deck w/ 3' Cleated Dovtail) Equipment Trailer |
| 16ET-17+3 | 83" x 17' + 3' (17' Deck w/ 3' Cleated Dovtail) Equipment Trailer |
| 16ET-17+3GN | 83" x 17' + 3' (17' Deck w/ 3' Cleated Dovtail) Equip Trlr- Gooseneck |
| 16ET-18 | 83" x 21' + 3' (21' Deck w/ 3' Cleated Dovtail) Equip Trlr- Gooseneck |
| 16ET-19+3 | 83" x 19' + 3' (19' Deck w/ 3' Cleated Dovtail) Equipment Trailer |
| 16ET-19+3GN | 83" x 19' + 3' (19' Deck w/ 3' Cleated Dovtail) Equip Trlr- Gooseneck |
| 16ET-20 | 83" x 20' (Straight Deck; No Dovetail) Equipment Trailer |
| 16ET-20GN | 83" x 20' (Straight Deck; No Dovetail) Equipment Trailer- Gooseneck |
| 16ET-21+3GN | 83" x 21' + 3' (21' Deck w/ 3' Cleated Dovtail) Equip Trlr- Gooseneck |
| 16ET-22 | 83" x 22' (Straight Deck; No Dovetail) Equipment Trailer |
| 16ET-22GN | 83" x 22' (Straight Deck; No Dovetail) Equipment Trailer- Gooseneck |
| 16ET-24GN | 83" x 24' (Straight Deck; No Dovetail) Equipment Trailer- Gooseneck |

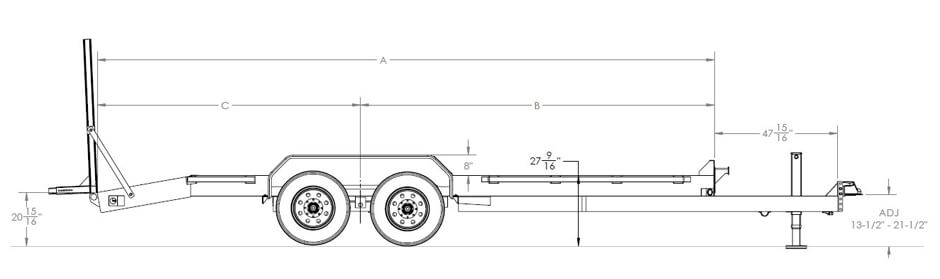

Dimensions
| Length | A | B | C |
|---|---|---|---|
| 15'+3' | 217-1/2" | 127" | 90-1/2" |
| 17'+3' | 240" | 138" | 102" |
| 17'+3' GN | 240" | 160" | 80" |
| 18' GN | 217-1/2" | 127" | 90-1/2" |
| 19'+3' | 264" | 152" | 112' |
| 19'+3' GN | 264" | 176" | 88' |
| 20' | 240" | 138' | 102" |
| 20' GN | 240' | 160" | 80" |
| 21'+3' GN | 288" | 192" | 96" |
| 22' | 264" | 152" | 112" |
| 22' GN | 264" | 176" | 88" |
| 24' GN | 288" | 192" | 96" |
Trailer Weights & Capacities
| Length | Empty Weight | Payload | Box Capacity |
|---|---|---|---|
| 15'+3' | 3,570# | 14,030# | N/A |
| 17'+3' | 3,700# | 13,900# | N/A |
| 17'+3' GN | 4,110# | 13,490# | N/A |
| 18' GN | 3,410# | 14,190# | N/A |
| 19'+3' | 3,810# | 13,790# | N/A |
| 19'+3' GN | 4,180# | 13,420# | N/A |
| 20' | 3,530# | 14,070# | N/A |
| 20' GN | 3,940# | 13,660# | N/A |
| 21'+3' GN | 4,270# | 13,330# | N/A |
| 22' | 3,620# | 13,980# | N/A |
| 22' GN | 4,030# | 13,570# | N/A |
| 24' GN | 4,130# | 13,470# | N/A |
Standard/Optional Equipment
Standard Equipment
- Adjustable 2-5/16" Demco Coupler in Channel
- Fold Back/Wrap Tongue
- 12,000# Drop Leg Jack- Side Wind *Dual Jacks & Front Toolbox on Gooseneck Model
- Fabricated Front Stop Rail
- Full 83" Wide Bed Between Fenders
- Double Broke Diamond Plate Fenders (Removable)
- Premium 8,000# Axles
- Cambered, Oil Bath Axles
- Forward Self Adjusting Electric Brakes
- 36" Cleated Dovetail (+3 Models)
- 5 Tall x 20" Wide Channel Knee Ramps- Spring Assisted
- Rubrail and Tie Down Pockets Along Sides
- Storage Tray in Tongue Area
- Grommet Mount, Sealed Lighting
- L.E.D. Lighting Package
- Sealed Modular Wiring Harness
- Complete Break-A-Way System w/Charger
- Zip Breakaway Cable
- 17.5" Radial Tires
- Premium HD Black Mod Wheels w/ 5/8" Wheel Studs
- Spare Tire Mount (Front)
Optional Equipment
| Category | Description |
|---|---|
| BODY | 3/16" Diamond Plate Steel Floor |
| BODY | Blackwood Pro Rubber Infused Floor |
| CARGO CONTROL | 5/8" D-Ring |
| CARGO CONTROL | Recessed D-Ring in Floor (Steel Floor Only) |
| COUPLER | Adjustable Pintle in Channel in Lieu of Coupler |
| RAMPS | 3 Blackwood Pro DT w/ 5 Super Wide Ramps |
| RAMPS | 36" Cleated Dovetail w/ 3 Mega Ramps |
| TIRE/WHEEL | Spare Tire (ST215/75 R-17.5 LR-H) |
