Super Duty Ultra Low Profile Dump
Its time for a trailer that makes the heaviest hauls easier to handle - its time for the 16LP Super Duty Ultra Low Profile Dump Trailer. Bringing together a heavy-duty frame and durable construction with an ultra-low profile for easy loading, unloading, and transporting, the 16LP delivers the strength and premium features that construction and landscaping professionals require for their daily grind. And with an integrated frame and tongue, this trailer is a robust, long-lasting thats ready for the toughest tasks you can throw at it.
- Overview
- Features/Specifications
- Standard/Optional Equipment
Overview
Big Tex 16LP Super Duty Ultra Low Profile Dump
Its time for a trailer that makes the heaviest hauls easier to handle - its time for the 16LP Super Duty Ultra Low Profile Dump Trailer. Bringing together a heavy-duty frame and durable construction with an ultra-low profile for easy loading, unloading, and transporting, the 16LP delivers the strength and premium features that construction and landscaping professionals require for their daily grind. And with an integrated frame and tongue, this trailer is a robust, long-lasting thats ready for the toughest tasks you can throw at it.
| SIZE | WEIGHT | DESCRIPTION |
|---|---|---|
| 14' | 4,500# | 83" x 14' Super Duty Ultra Low Profile Dump |
| 16' | 4,950# | 83" x 16' Super Duty Ultra Low Profile Dump |
Features/Specifications
Features
| AXLE | (2) 8,000# Oil-Bath w/ Elec. Brakes |
|---|---|
| JACK | 12,000# Side Wind Drop Leg |
| TIRE | ST215/75 R-17.5 Load Range E |
| FLOOR | 7 Gauge Smooth Steel |
| WHEEL | 17.5" x 6.75"; Black Mod 8 Bolt |
| FINISH | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish. |
| LIGHTS | L.E.D. D.O.T. Stop, Tail, Turn and Clearance |
| TONGUE | Integral with Frame (8" I-Beam, 10#) |
| COUPLER | Adjustable 2-5/16" 18,000# Demco EZ Latch |
| FENDERS | 9" x 72" 14Ga.Diamond Plate Double Square Broke |
| G.V.W.R. | 17,500# |
| ELEC. PLUG | 7-Way RV |
|---|---|
| HITCH TYPE | Bumper Pull |
| MAIN FRAME | 8" I-Beam, 10# |
| SUSPENSION | Multi-Leaf Spring w/Equalizer |
| BED TOP RAIL | 2" x 2" Square Tubing |
| FINISH (Prep) | Steel is Cleaned to Ensure a Professional Smooth Finish. |
| SAFETY CHAINS | 3/8" Grd. 70 w/Safety Latch Hook (2 each) |
| DUMP BODY SIDES | 24" Tall Sides (10 Gauge) |
| G.A.W.R. (Ea. Axle) | 8,000# |
| DUMP BODY CROSSMEMBERS | 3" Channel, 16" Centers |
Specifications
Big Tex 16LP Super Duty Ultra Low Profile Dump
| Model | Description |
|---|---|
| 16LP-14 | 83" x 14' Super Duty Ultra Low Profile Dump |
| 16LP-16 | 83" x 16' Super Duty Ultra Low Profile Dump |

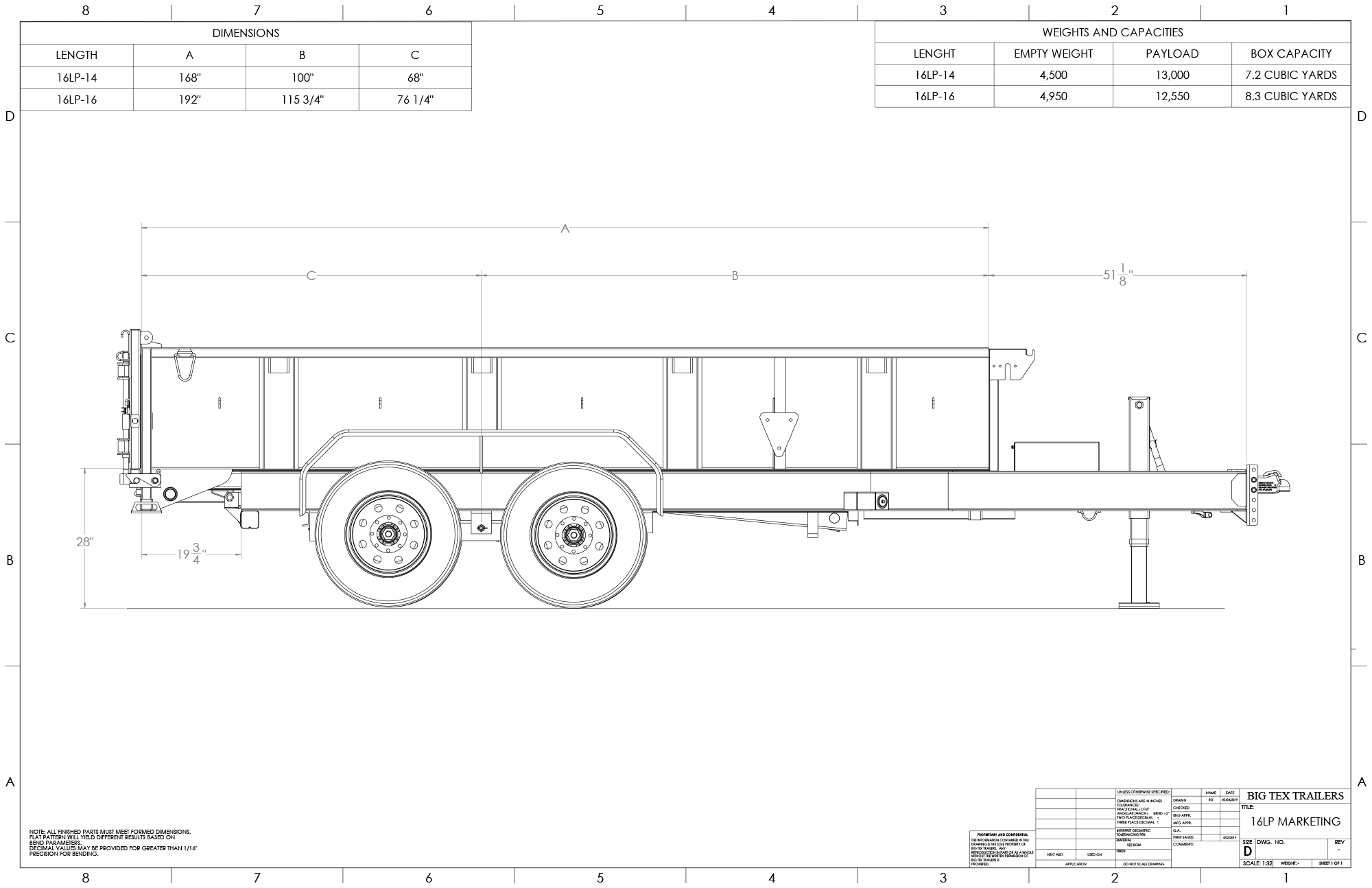

Dimensions
| Length | A | B | C |
|---|---|---|---|
| 14' | 168" | 100" | 68" |
| 16' | 192" | 115 3/4" | 76 1/4" |
Trailer Weights & Capacities
| Length | Empty Weight | Payload | Box Capacity |
|---|---|---|---|
| 14' | 4,500# | 13,000# | 7.2 Cubic Yards |
| 16' | 4,950# | 12,550# | 8.3 Cubic Yards |
Standard/Optional Equipment
Standard Equipment
- Adjustable 2-5/16" Demco EZ Latch Coupler
- 8" I-Beam Frame w/Integrated Tongue
- 12,000# Top Wind Drop-Leg Jack
- Lockable Pump and Battery Box Mounted in Front of Bed
- 24" Tall, 10 Gauge Sides w/Formed Channel Supports
- 7 Gauge Steel Floors
- Fully Formed Tarp Shroud on Front
- Crank Style Roll Tarp- Standard Equipped
- Tarp Rod Included to Secure Tarp on Rear
- J-Hooks on Sides and Rear for Tarp Control
- Stakepockets Along Sides
- Self Contained Electric/Hydraulic Scissor Hoist
- Power Up/Power Down Hydraulic Pump
- 12V Interstate Deep Cycle Battery
- 110V On-Board Battery Charger (5 Amp)
- Premium Brand Axles
- Cambered Axles w/Quick Lubricating Hubs
- Forward Self Adjusting Electric Brakes on All Hubs
- Grommet Mount Sealed Lighting
- L.E.D. Lighting Package
- Sealed, Modular Wiring Harness
- Complete Brake Away System
- Zip Breakaway Cable
- Diamond Plate Fenders
- 2" Square Tubing Top Rail on Dump Bed
- Combo Gate (Barn Doors and Spreader Gate)
- Rear Stabilizer Stands
- (4) 1/2" D-Rings Inside Bed to Secure Equipment
- Spare Tire Mount
- Radial Tires
Optional Equipment
| Category | Description |
|---|---|
| BODY | 3 Solid Sheet Metal Sides |
| BODY | 4 Foot Solid Sheet Metal Sides |
| COUPLER | Adjustable Pintle in Channel ILO Coupler |
| JACKS | 12,000# Elec/Hyd. Jack BY Stillwell |
| POWER | 5 Watt Solar Charger |
| POWER | Wireless Remote |
| RAMPS | 6.5 Foot Slide In Ramps |
| TIRE/WHEEL | Spare Tire (ST215/75 R-17.5 LR-H) |
