Big Tex 3XPH
Call For More Information
Super Duty Tandem Dual Axle Pintle Trailer
The biggest jobs require a super-duty trailer that never quits. A trailer that never gives us, the 3XPH Super Duty Tandem Dual Axle Pintle Trailer is unyielding, and with 15K axles and premium adjustable suspension its built to tackle the most heavy-duty and high-capacity jobs. Its ready to haul extremely heavy equipment, machinery, and large loads with a 30,000 lbs G.V.W.R. And you wont have to worry about loading and unloading being difficult with its heavy-duty, spring-assist, double-hinged ramps. With this trailer, the big jobs dont stand a chance.
- Overview
- Features/Specifications
- Standard/Optional Equipment
Overview

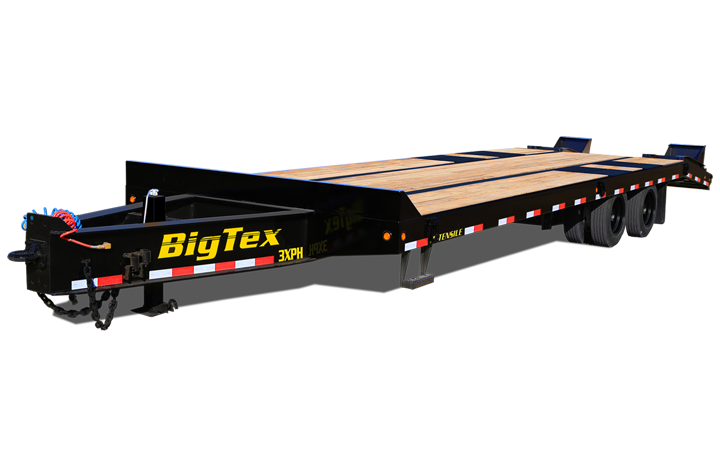

Big Tex 3XPH Super Duty Tandem Dual Axle Pintle Trailer
The biggest jobs require a super-duty trailer that never quits. A trailer that never gives us, the 3XPH Super Duty Tandem Dual Axle Pintle Trailer is unyielding, and with 15K axles and premium adjustable suspension its built to tackle the most heavy-duty and high-capacity jobs. Its ready to haul extremely heavy equipment, machinery, and large loads with a 30,000 lbs G.V.W.R. And you wont have to worry about loading and unloading being difficult with its heavy-duty, spring-assist, double-hinged ramps. With this trailer, the big jobs dont stand a chance.
| SIZE | WEIGHT | DESCRIPTION |
|---|---|---|
| 20'+5' | 5,800# | 102" x 20' + 5' Super Duty Tandem Dual Wheel Pintle |
| 25'+5' | 6,300# | 102" x 25' + 5' Super Duty Tandem Dual Wheel Pintle |
Features/Specifications
Features
| AXLE | (2) HD 15,000# Dual Wheel w/ Electric Brakes (Oil Bath) |
|---|---|
| JACK | 12,000# Drop Leg Jack- Top Wind |
| TIRE | 215/75 R-17.5 Load Range H Dual |
| FLOOR | 2" Treated Pine or Douglas Fir* |
| FRAME | 12" I-Beam, 22# |
| WHEEL | 17.5" HC x 6.75", 8x275 MM BC Hub Pilot; Dual Wheel |
| FINISH | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish. |
| LIGHTS | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| TONGUE | Integral with Frame (12" I-Beam, 22#) |
| COUPLER | 3" ID Pintle Ring |
| DOVETAIL | 5 Cleated Dovetail w/5 Double Hinged, Spring-Assisted Flip-Over Ramps |
|---|---|
| G.V.W.R. | 30,000# |
| ELEC. PLUG | 7-Way RV |
| HITCH TYPE | Pintle Hitch |
| SIDE RAILS | 8" Channel w/Rub Rail, Stake Pockets, and Chain Spools |
| SUSPENSION | Heavy Duty 44,000# Adjustable |
| CROSSMEMBERS | 6" Jr. I-Beam,16" Centers |
| FINISH (Prep) | Steel is Cleaned to Ensure a Professional Smooth Finish. |
| SAFETY CHAINS | 1/2" Grd. 80 w/Safety Latch Hook (2 each) |
| G.A.W.R. (Ea. Axle) | 15,000# |
Specifications
Big Tex 3XPH Super Duty Tandem Dual Axle Pintle Trailer
| Model | Description |
|---|---|
| 3XPH-20+5 | 102" x 20' + 5' Super Duty Tandem Dual Wheel Pintle |
| 3XPH-25+5 | 102" x 25' + 5' Super Duty Tandem Dual Wheel Pintle |

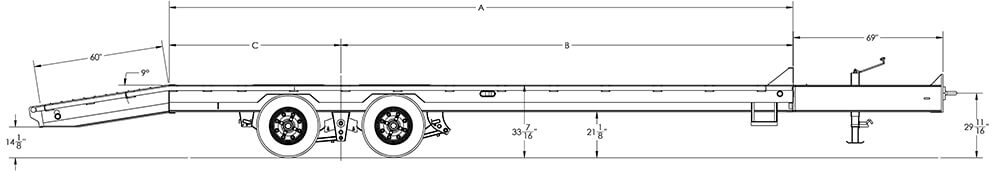

Dimensions
| Length | A | B | C |
|---|---|---|---|
| 20'+5' | 240' | 160" | 80" |
| 25'+5' | 288" | 192" | 96" |
Trailer Weights & Capacities
| Length | Empty Weight | Payload | Box Capacity |
|---|---|---|---|
| 20'+5' | 5,800# | 39,200# | N/A |
| 25'+5' | 6,300# | 38,700# | N/A |
Standard/Optional Equipment
Standard Equipment
- 3" ID Pintle Ring
- 12,000# Drop Leg Jack- Top Wind
- 102" Overall Width
- Low Profile Bed, Pierced- Beam Frame
- (2) Side Bed Steps
- 3/8" Heavy Duty Rub Rail
- Stake Pockets Along Sides, 24" On Center
- 1-1/4" Pipe Chain Spools Between Tie Down Pockets
- Premium Brand Axles
- Oil Bath Hubs
- Forward Self Adjusting Brakes
- Heavy Duty 44,000# Adjustable Suspension
- Grommet Mount Sealed Lighting
- L.E.D. Lighting Package
- Modular Sealed Wiring Harness
- Spare Tire Mount
- 5 Dovetail w/ 5 Double Hinged Spring Assist Flip-Over Ramps
- Complete Break-A-Way System w/Charger
- Zip Breakaway Cable
- Radial Tires
- Mudflaps
- Spare Tire & Wheel- Standard Equipped
Optional Equipment
| Category | Description |
|---|---|
| BODY | Blackwood Rubber Infused Floor |
| BODY | Lockable Lid Over Tool Storage In Tongue |
| BRAKES | Air Brake Assembly w/ABS on Front, Spring Brake Chambers & Auto Slacks |
| BRAKES | Electric Over Hydraulic Brakes (Drum) |
| CARGO CONTROL | 4" Sliding Winch |
| CARGO CONTROL | 4" Weld-On Winch |
| CARGO CONTROL | 4" x 30 Strap |
| CARGO CONTROL | B40 5/8" D-Ring |
| CARGO CONTROL | Low Profile Tool Box 15" x 15" x 36" (Side Mount) |
| CARGO CONTROL | Sliding Winch Track (Per 6 Section) |
| JACK | Dual 2-Speed Landing Gear |
| JACK | Dual Electric Over Hydraulic Jacks by Stillwell |
| JACK | Dual Single-Speed Drop-Leg Jacks |
| RAMPS | (2) 5 MEGA Ramps |
| RAMPS | No Dovetail Option (Deletes Dovetail & Ramps) |
