Big Tex 50SR
Call For More Information
Single Axle Single Ram Dump Trailer
The 50SR from Big Tex is our light-duty dump trailer. This unit is small but mighty, perfect for hauling mulch, dirt, gravel and other light loads around the home or farm. Premium brand axles, forward self-adjusting electric brakes and other features give this manageable dump trailer the same conveniences as the big boys.
- Overview
- Features/Specifications
- Standard/Optional Equipment
Overview

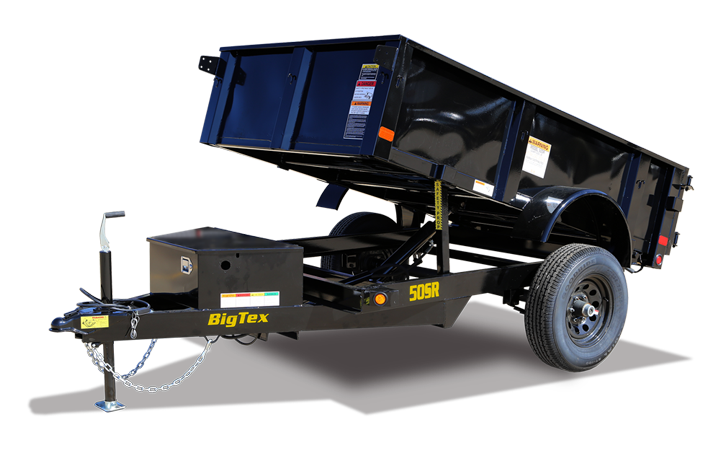

Big Tex 50SR Single Axle Single Ram Dump Trailer
The 50SR from Big Tex is our light-duty dump trailer. This unit is small but mighty, perfect for hauling mulch, dirt, gravel and other light loads around the home or farm. Premium brand axles, forward self-adjusting electric brakes and other features give this manageable dump trailer the same conveniences as the big boys.
| SIZE | WEIGHT | DESCRIPTION |
|---|---|---|
| 8'-5WDD | 1,680# | 60" x 8' Single Axle Single Ram Dump |
Features/Specifications
Features
| AXLE | (1) 5,200# Quick Lubricating w/Elec. Brakes |
|---|---|
| JACK | 2,000# Top Wind (Bolted On) |
| TIRE | ST225/75 R-15 Load Range D |
| FLOOR | 16 Gauge Smooth Steel |
| FRAME | 5" Channel |
| WHEEL | 15" x 6"; Black Mod 6 Bolt |
| FINISH | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish. |
| LIGHTS | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| TONGUE | 5" Channel |
| COUPLER | 2-5/16" Stamped A-Frame |
| FENDERS | 9" x 36" 16GA Roll Formed |
| G.V.W.R. | 5,000# |
|---|---|
| ELEC. PLUG | 7-Way RV |
| HITCH TYPE | Bumper Pull |
| SUSPENSION | Multi-Leaf Spring w/Equalizer |
| CROSSMEMBERS | 2" Channel, 17" Centers |
| FINISH (Prep) | Steel is Cleaned to Ensure a Professional Smooth Finish. |
| SAFETY CHAINS | 1/4" Grd. 70 w/Safety Latch Hook (2 each) |
| BED SIDE RAILS | Formed, Integrated with sides |
| BED CROSSMEMBERS | 20" Tall Sides (16 Gauge) |
| G.A.W.R. (Ea. Axle) | 5,080# |
Specifications
Big Tex 50SR Single Axle Single Ram Dump Trailer
| Model | Description |
|---|---|
| 50SR-08-5WDD | 60" x 8' Single Axle Single Ram Dump |

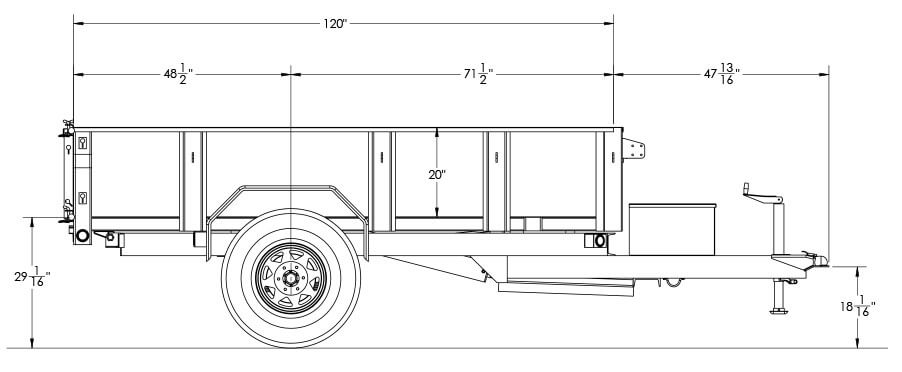

Dimensions
| Length | A | B | C |
|---|---|---|---|
| 8'-5WDD |
Trailer Weights & Capacities
| Length | Empty Weight | Payload | Box Capacity |
|---|---|---|---|
| 8'-5WDD | 1,680# | 3,320# | 2.5 Cubic Yards |
Standard/Optional Equipment
Standard Equipment
- Lockable Pump and Battery Box Mounted in Front of Bed
- 20" Tall, 16 Ga. Sides w/Formed Channel Supports
- Tarp Mounting Brackets on Front of Bed
- J-Hooks on Sides and Rear for Tarp Control
- Stake Pockets Along Sides
- Self Contained Electirc/Hydraulic Single Cylinder Lift
- Power Up/Power Down Hydraulic Pump
- 12V Interstate Deep Cycle Battery
- Quick Lubricating Hubs
- Premium Brand Axles
- Cambered Axle
- Forward Self Adjusting Electric Brakes
- Grommet Mount Sealed Lighting
- L.E.D. Lighting Package
- Sealed, Modular Wiring Harness
- Removable Sand Foot on Jack
- Complete Break-A-Way System
- Double Rear Doors
- Radial Tires
Optional Equipment
| Category | Description |
|---|---|
| CARGO CONTROL | Crank Style Roll Tarp |
